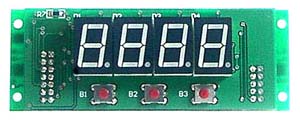

SC4Dlite
- 4 Digits Serial LED Module
USD
25 / Unit
BUY
Now!
SC6Dlite
- 6 Digits Serial LED Module
USD
30 / unit
BUY
NOW !
SC4D
- 4 Digits Multi Function Serial LED Module
USD
40 / Unit
BUY
NOW !

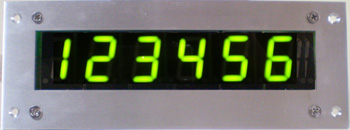

SC6D
- Large 6 Digits Multi Function Serial LED Module
USD
52 / Unit
BUY
NOW !
SCDM88
- Serial 8 x8 Dot Matrix LED Module
USD
30 / Unit
BUY
NOW !

SC1602
- 16x2 Character Serial LCD Module
Yellow
Green USD 26 / Unit
Blue USD 28 / Unit
BUY
NOW!

SC2004
- 20 x 4 Characters Serial LCD Module
Yellow
Green USD 35 / Unit
Blue USD 38 / Unit
White USD 38 / Unit
BUY
NOW !

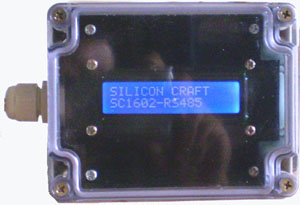

SC1602Pro
- 16 x 2 Characters RS485 LCD Module
Yellow
Green USD 25.00 / Unit
BLUE USD 28.00 / Unit
BUY
NOW !
SC6DMBS
- MODBUS RTU Slave LED Display and Counter
USD
52 / Unit
BUY
NOW !
SC1602MBS
- MODBUS RTU Slave LCD Module
Yellow
Green USD 25 / Unit
Blue USD 28 / Unit
BUY
NOW !
SC1602MBM
- MODBUS RTU Master LCD Module
Yellow
Green - USD 25 / Unit
Blue- USD 28 / Unit
BUY
NOW !
SCColorMIX
- RGB LED Sequencer
USD
20 / Unit
BUY
NOW !
SRGB
- RGB LED Stripe
USD
15 / Unit
BUY
NOW !
SCTimeZone618
- Large LED World Time Clock
USD
52 / Unit
BUY
NOW !
|
3
Display Modes:
Segment control,
on/off individual segment
ASCII mode, convert ASCII to seven segment
Decimal to seven segment including negative number
Display up
to 10 digits with auto scroll feature.
RS232/TTL interface with programmable baud rate.
Internal Real Time Clock.
Serially control buzzer and high current output.
Up to 255 modules cascadable with address setting.
0.52 inch digit height.
USER'S
GUIDE
>
More Info
Individual
Segment Control
ASCII to 7 Seven Segments
Integer to Seven Segments( Signed Integer Support )
10 Display Value Memory Storage
RS232/TTL Interface
0.8" Digit Height
Up to 255 modules cascadable each with programmable address
USER'S
GUIDE
6
Operating Modes:
Serial Display
- ASCII to seven segment
Real time clock
Count down time with start/stop, pause and reset buttons
Temperature sensor
Event Counter
PWM Controller
Display up to 10 digits with auto scroll feature.
RS232/RS485/TTL interface with programmable baud rate.
Serially control buzzer and high current output.
0.52 inch digit height
Programmable Device Address.
USER'S
GUIDE More
Info>>
5
Operating Modes:
Serial Display
- ASCII to seven segment
Real time clock
Count down time with start/stop, pause and reset buttons
Temperature sensor
Event Counter
RS232/RS485/TTL
interface with programmable baud rate.
Serially control buzzer and high current output.
1.8 inch digit height
Programmable Device Address.
USER'S
GUIDE
Serially
Control 8 x 8 Dot Matrix LED Module ( RED )
2.3"
x 2.3" Module Display Size
Built-In ASCII Character Set
Built-In Animation
20 characters message scrolling or Animate
10 User's define 8x8 bitmap
RS232 Interface
USER'
GUIDE
16
x 2 Characters Serial LCD Display Module
Yellow Green
or Blue Backlight
RS232/TTL Interface, programmable baud rate 9600bps or 19200bps
85 Bytes UART receive buffers eliminate delay requirement
Serially Control I/O; 3 Inputs and 3 Outputs
11 pages screen storage
Serially Control backlight brightness
8 User's define Characters
Horizontal Graph Drawing
2 Analog Ports
USER'S
GUIDE
20
x 4 Characters Serial LCD Display Module
Yellow Green/
Blue / White Backlight
RS232/TTL Interface, programmable baud rate 9600bps or 19200bps
85 Bytes UART receive buffers eliminate delay requirement
Serially Control I/O; 3 Inputs and 3 Outputs
5 pages screen storage
Serially Control backlight brightness
8 User's define Characters
Horizontal And Vertical Graph Drawing
4 Analog Ports
On board
5V regulator
USER'S
GUIDE
16
x 2 Characters RS485 Serial LCD Display Module
RS485 , Programmable
baud rate of 9600bps or 4800bps
RS485 addressable
Serially Controlled Backlight ON/OFF or Blinks.
8 User's Defined Characters
Programmable Default Screen
One Input and One Output
Yellow Green or BLUE Backlight
USER'S
GUIDE
Modbus
RTU Slave
Serially Readable Counter Value
Display integer and ASCII values
Programmable Baud Rate
Addressable
RS232/RS485
Two open collector outputs
On board piezo Buzzer
Selectable decimal Point
USER'S
GUIDE
16
x 2 Characters Serial Modbus RTU Slave LCD Display
Modbus RTU
Slave
Display messages from Modbus Master Device
RS485/RS232 selectable baud rate 9600 to 38400, 8N2, 8E1, 8O1
Support integer,long integer format
Selectable decimal points location
Dark Characters on Yellow Green Backlight or White Characters on Blue
Backlight
USER'S
GUIDE
16
x 2 Characters Serial Modbus Master LCD Display
Modbus RTU
Master
Read and Display Modbus Slave Device Register Value
RS485/RS232 selectable baud rate 9600 to 38400, 8N2, 8E1, 8O1
Programmable Variable Description and measurement units
Programmable Alarm Set Point
Support integer, long integer and floating point format
Selectable decimal points location
Dark Characters on Yellow Green Backlight or White Characters on Blue
Backlight
USER'S
GUIDE
RGB
LEDs Controller
Control LED
color by serial command.
Set 10 LED
colours and let it auto run.
Programmable
fade interval and hold interval.
Come with
one onboard OSRAM MultiLED LED onboard for color preview.
RS232 interface
with Computer.
USER'S
GUIDE
High Brightness
RGB Led Strip
10 OSRAM
MultiLED LEDs per strip. ( 150mm x 15mm )
Low profile
- 3.6mm height.
Multiple
strips cascadeable to form longer strip.
DATASHEET
6
Digits 7 Segments LED World Clock
Networkable
to display up to 5 time zone
Free SCZoneTime Software
Synchronise with PC time
1.8 inch digit height Red LED
USER'S
GUIDE
|
